Aitek Tachometers
datasheet Instruction Manual   datasheet Datasheet

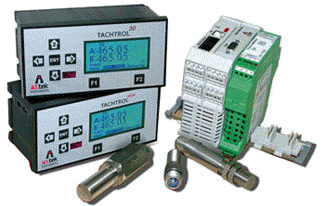

Aitek Tachometers
  • Improved instrument accuracy, processing speed and response time
  • Frequency, period or counter modes
  • Accepts bi-directional sensor inputs, decodes quadrature or direction signal logic
  • 126 x 64 pixel LCD backlit display for speed, units, alarm status, security and programming (TACHTROL series)
  • 4 relays with user-defined set points and behavior
  • Analog output: 0 or 4 - 20mA, -20 to +20mA with use of bi-directional sensor
  • Two programming methods: Front panel on display or USB2.0 connectivity to PC / Windows-based GUI (Graphical User Interface)
  • Utility RS485 communication allows full GUI function (up to 8000 ft)
  • Drives up to 8 remote displays (TTplus)
  • Wide range of AC or DC power
  • Environmentally hardened for temperature, vibration and shock
  • EMC / CE compliant to current BS EN directives.
  • RoHS Compliant
Refernce Documentation & Literature Click here
New Generation Tachometer Configuration Chart
 AC Voltage
80-264 Vac		DC Voltage
12-30
Vdc		 Utility
RS-
-485		 USB
TACHLINK
compatible		 Analog Output Mecha-
-nical
Relays
(2)		 Solid State Relays
(2)		 Infrared Remote Compa-
-tible**		 Panel Mount DIN Rail Mount NEMA 4X Explo-
-sion Proof/
ATEX		  Photo Price Order
TACHPAK 10
T77510-10XX   X   X       X     $350.00
T77510-40XX   X   X         X   $575.00
T77510-70XX   X   X           X $1175.00
TACHPAK 30
T77530-10XX X X X X X     X     $695.00
T77530-40XX X X X X X       X   $865.00
T77530-70XX X X X X X         X $1475.00
TACHTROL 10
T77610-10XX   X   X   X X       $695.00
T77610-40XX   X   X   X     X   $965.00
T77610-70XX   X   X   X       X $1895.00
RemoteControl                       $25.00
TACHTROL 30
T77630-10XX X X X X X X X       $825.00
T77630-40X X X X X X X X     X   $1125.00
T77630-70 XX X X X X X X       X $1995.00
RemoteControl                       $25.00
TACHTROL plus TACHTROL plus is a remote display only.It is used to provide display and programming functions. Up to 8 display can be connected to a single tachometer.***
T77810-10

X

 X       $365.00
T77810-40

X

     X   $590.00
T77810-70

X

       X

$1535.00
RemoteControl





$25.00
**Infrared remote included with TACHTROL -40 and -70 units only.
***Seven TACHRTROL plus displays for TACHTROL 10 & 30 / Eight TACHTROL plus display for TACHPAK 10 & 30.
